User Interface



Frequency Selection Window

for defining the selected layers filtered frequency range and selection parameters.



Boarder Graphics

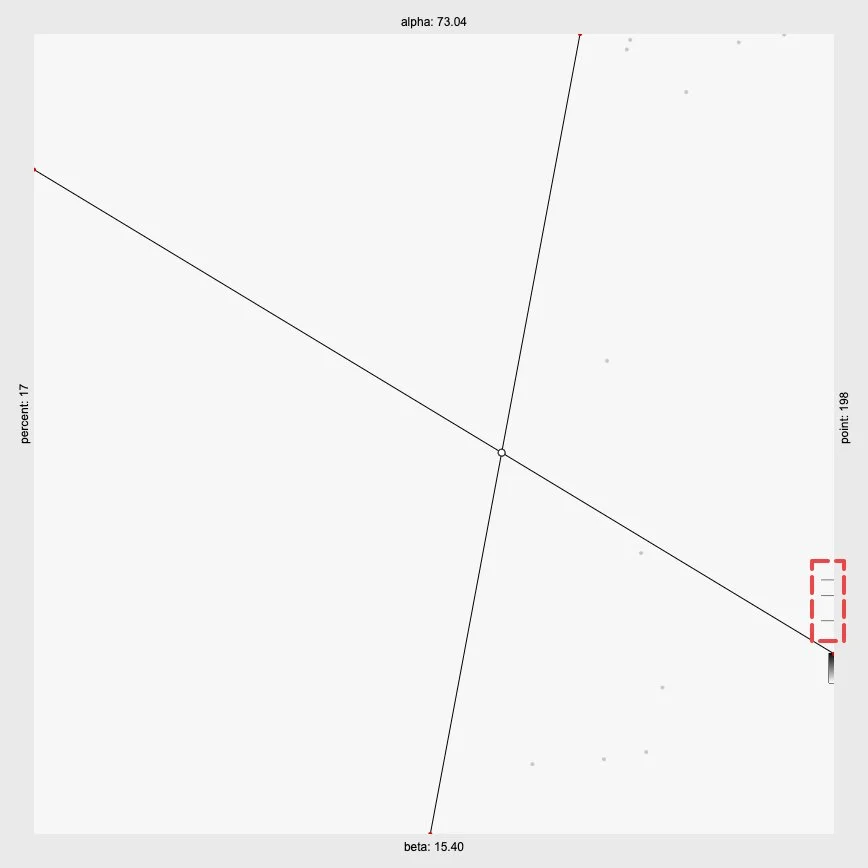

Clipping Guides

  • Shows the user where the selectable image data produced by the filters processing resides, within a 0-255 space.

    • Top the darkest image value

    • Middle the average image value

    • Bottom the brightest image value

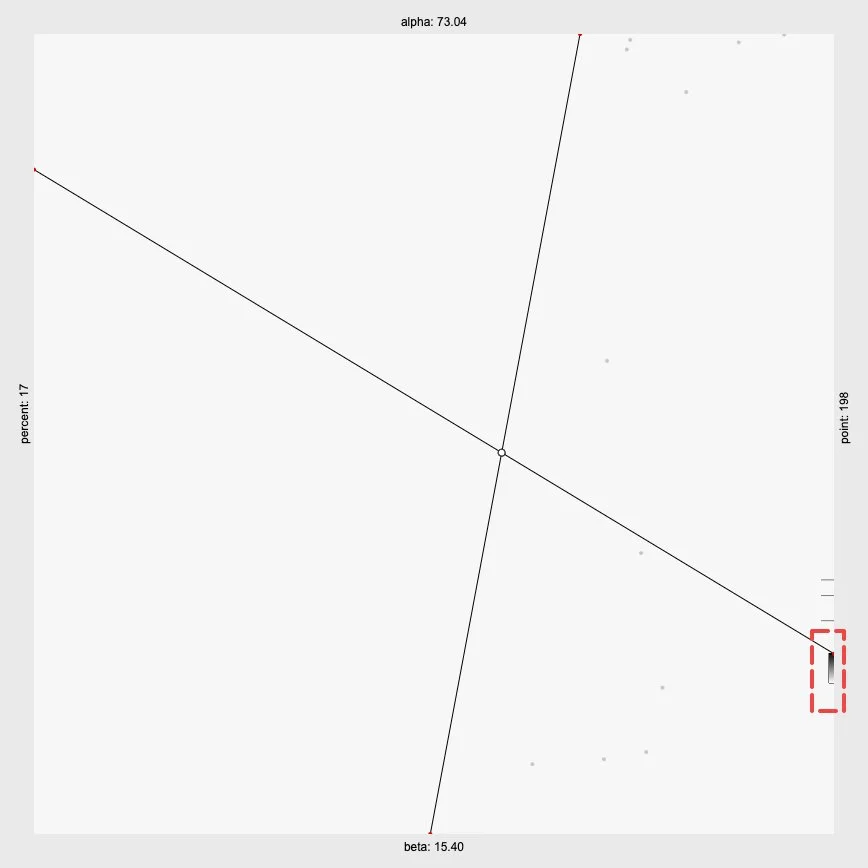

Gradient

  • Shows the user, the point from which the filter's output will be filled and by what percent.



Control Points

Central

  • Updates all points while preserving their ratios

Alpha

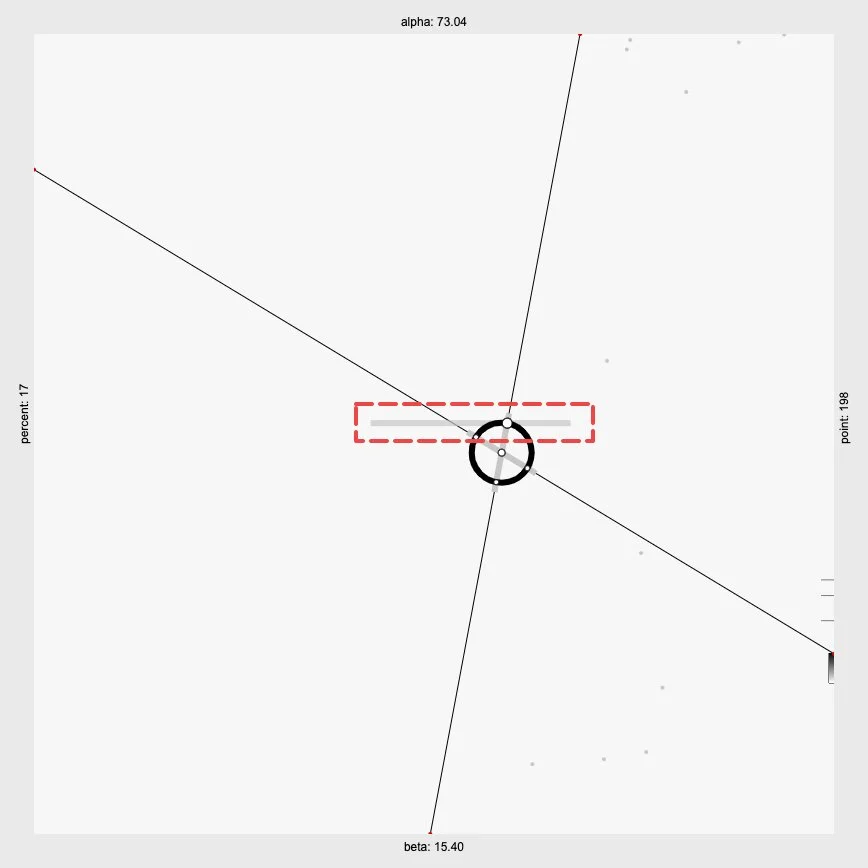

  • Updates the alpha frequency

Beta

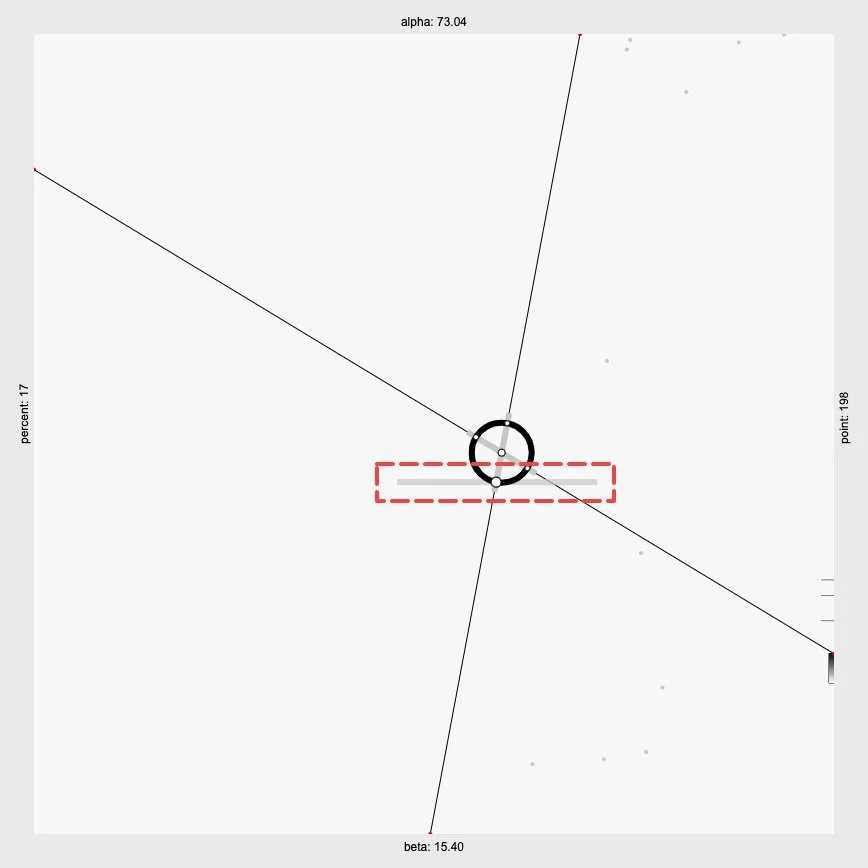

  • Updates the beta frequency

Point

  • Updates the point from which the sampling starts

Percent

  • Updates the range in percent from the point of sampling



Control Bars

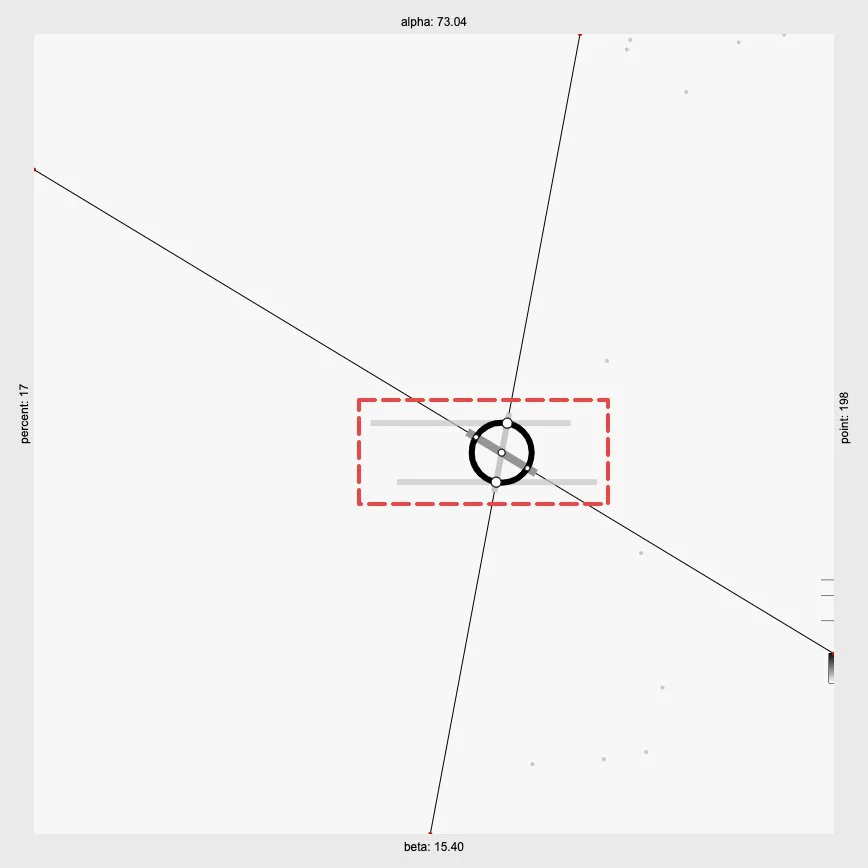

Horizontal Bar

  • Updates both alpha and beta frequencies while preserving their ratio

Vertical Bar

  • Updates both point and percent while preserving their ratio
